Polyvalley Solid Corrugated Sheets

Polyvalley Corrugated sheet has solid corrugated sheet and multi-wall corrugated sheet. The solid corrugated sheet has very high light transmit and strong resistance. And the multi-wall corrugated sheet adopts two-wall R structure and can get very high light transmit either with lower K value. With small vertical bar distance, it can get very high strength. And during installation, the connection part of two sheets can be overlapped perfectly to avoid water permeation. Polyvalley offers a complete set of accessory for easy installation.

We can also customize different types of corrugated sheets

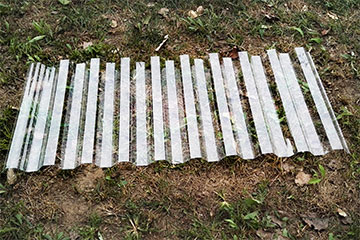

Solid Corrugated (1100S-26/112)

Model:1100S-26/112
Width:1100mm(effective width1050mm)
Height:26mm;Wave Space:112mm
Thickness:0.65-1.5mm
Length: Customized (no limited)
Color: clear, blue, green, opal, grey, red etc.

Solid Corrugated(1110S-28/210)

Model:1110S-28/210
Width:1110mm(effective width1050mm)
Height:28mm;Wave Space:210mm
Thickness:0.65-1.5mm
Length: Customized (no limited)
Color: clear, blue, green, opal, grey, red etc.

Solid Corrugated(1190S-18/76)

Model:1190S-18/76
Width:1190mm(effective width1114mm)
Height:18mm;Wave Space:76mm
Thickness:0.65-1.5mm
Length: Customized (no limited)
Color: clear, blue, green, opal, grey, red etc.

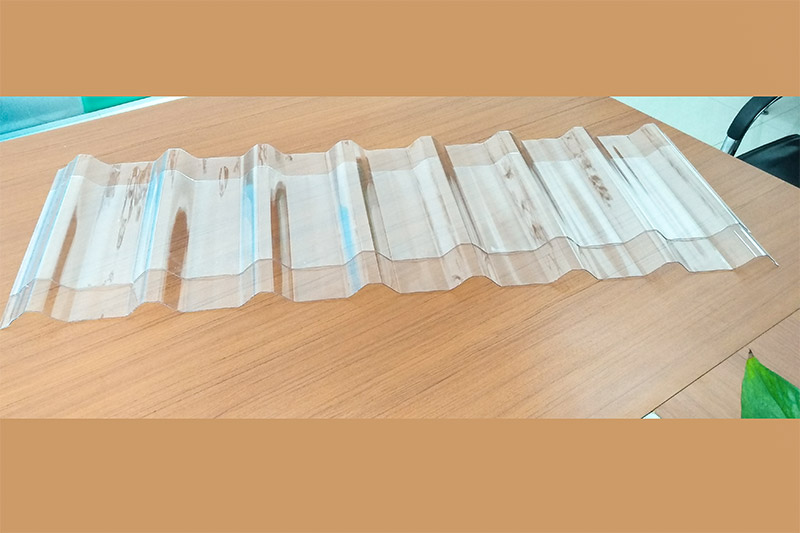

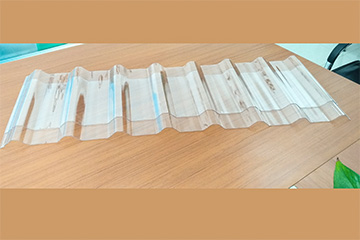

Solid Corrugated(1070S-23/146)

Model:1070S-23/146
Width:1070mm(effective width1020mm)
Height:23mm;Wave Space:146mm
Thickness:2-2.5mm
Length: Customized (no limited)
Color: clear, blue, green, opal, grey, red etc.

Solid corrugated sheets specification

We can also customzied special function sheets such as IR heat insulation, Anti-drop, Anti-static, frosted sheets, etc.

The PC corrugated sheets must be kept horizontally and placed in the shade. Self-tapping screw with water-proof plate can be used to fix the sheet with purlin. The two corrugated sheet can be connected accordingly. Please try to use less silica gel.

Easy and lower cost installation, 100% water proofed
